SPF Roof Repair in Phoenix, Arizona

Overview

Foam roofs rarely fail across the whole surface. They fail at specific points, and almost always at details rather than in the open field. A satellite installer drives a lag through the coating. A compressor gets dragged across the roof and tears the membrane. The sealant at a plumbing vent dries out after years of forty degree daily temperature swings and pulls away from the pipe. Every one of those is a small, cheap repair on the day it happens. The trouble is that nobody sees it happen, and by the time a stain appears on a bedroom ceiling in August, water has been traveling through the foam for a while.

That lateral travel is what makes foam roof repair a diagnostic job before it is a construction job. Water entering a puncture does not go straight down. It moves along the plane between the foam and the deck, or through interconnected voids in the foam itself, and it emerges wherever the deck lets it through. That point is frequently ten, twenty, or more feet from the actual breach. Chasing the interior stain and sealing the roof directly above it is the most common failed repair we get called to fix. Proper diagnosis means moisture scanning, careful visual inspection of every detail, and sometimes controlled water testing.

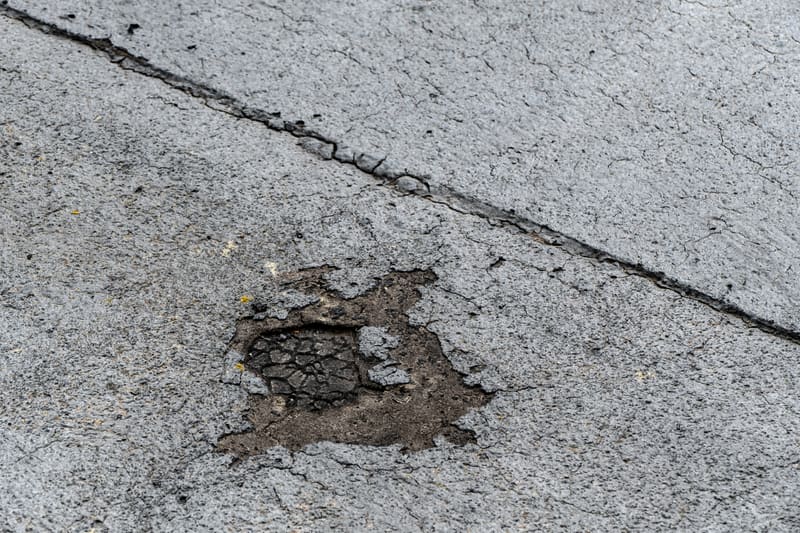

The repair itself depends on what we find. Coating-level damage such as pinholes, hairline cracks, and abraded areas gets cleaned, primed if needed, and patched with reinforcing polyester fabric embedded in compatible coating. Failed penetration seals are cut out and rebuilt properly rather than caulked over. Blisters are cut open, dried, filled, and coated. When the foam beneath is wet or crushed, that section has to be removed and re-foamed, which is a separate scope. What we do not do is apply mastic over a wet roof and call it fixed, because that repair fails by the next monsoon.

Leak Forensics: Working Backward From the Stain

Diagnosing a foam roof leak is closer to detective work than to carpentry, and the discipline is refusing to accept the first plausible answer. The interior stain is evidence of where water exited the assembly, which is governed by the deck rather than by the roof surface. On a wood plank deck, water follows the plank direction and drops at a joint. On plywood, it travels to a seam. On lightweight insulating concrete, it can move a considerable distance before finding a crack. Each of those substrates produces a different relationship between entry point and exit point, and knowing which one you are standing on narrows the search considerably.

The second piece of evidence is timing. A leak that appears within minutes of rain starting usually indicates a direct, open path, typically a puncture or a failed penetration seal near the exit point. A leak that appears hours later, or that continues after the rain stops, usually indicates saturated foam draining slowly, which means the breach may be far away and the wet area is large. A leak that only appears during wind-driven rain from one direction points at a vertical detail, a parapet cap, a wall transition, or a scupper throat rather than at the roof field at all.

Why Infrared Only Works in a Narrow Window

Thermal imaging finds wet insulation by exploiting the fact that saturated material stores more heat and releases it more slowly than dry material. That difference is only visible during a specific window: after the roof has absorbed a full day of solar loading and then begun to cool, typically starting an hour or two after sunset. Scan too early and everything is uniformly hot. Scan too late and the differential has dissipated. Phoenix actually offers excellent conditions for this because our solar loading is intense and our nights cool quickly, but the roof must also be dry on the surface and free of standing water, and wind will flatten the signature.

Controlled Water Testing and Its Sequence

When thermal imaging and visual inspection do not agree, controlled water testing settles it. The principle is to introduce water at one suspected location at a time, starting at the lowest point of the roof and working uphill, with someone watching the interior. Flooding the whole roof teaches you nothing because any positive result is unattributable. Each test area gets isolated, water runs for a defined period, and the interior observer reports. It is slow, and on a Phoenix roof in summer the water evaporates fast enough to require a steady supply, but it produces a definite answer rather than a hypothesis.

Triage During an Active Monsoon Cell

A microburst rolling over the Valley at nine at night is not the moment for a permanent repair. Coating will not cure on a wet surface, foam cannot be sprayed in the rain, and nobody should be on a roof in lightning. What an emergency call is actually for is limiting damage inside the building and buying time until a proper repair window opens. The sequence below is what a competent emergency response looks like, and it is worth understanding so you know what to expect and what to ask for.

1. Protect the interior first, moving or covering contents and containing water so a roof problem does not become a drywall and flooring problem.
2. Identify the general area of entry from the interior evidence, without assuming it is directly above the drip.
3. Apply temporary containment on the roof only when conditions allow safe access, using materials that will not contaminate the surface for the permanent repair.
4. Clear drains and scuppers, since a blocked outlet frequently turns a small breach into a large one by raising the water level over it.
5. Document conditions with photographs during the event, because that record matters for both insurance and warranty purposes later.
6. Return in a dry window for diagnosis and permanent repair, with the temporary material fully removed rather than coated over.

Patch Geometry and Why Square Corners Fail

The shape of a repair matters more than most people would guess. Stress concentrates at corners, and a square patch on a roof that expands and contracts daily will begin cracking at those four points before anything else on the repair gives out. Rounding the corners, or cutting the repair area as an oval, distributes that stress along a curve instead of focusing it at a point. The same principle applies to the reinforcing fabric, which should be cut generously oversized and rounded, then fully embedded so no dry edge is left standing proud where water can work under it.

Feathering is the other half. A repair that sits as a raised island on the roof surface creates a dam, and on a low-slope Phoenix roof any dam creates ponding, which is the condition you were trying to avoid. Coating should be worked out well beyond the fabric edge and tapered down to the existing surface so water runs across the patch rather than around it. A properly executed repair is slightly thicker at the center, invisible in profile at the edges, and drains in the same direction the roof always did.

Material Compatibility Between the Repair and the Existing System

The most expensive mistake in foam roof repair is not a bad patch. It is a patch made from the wrong material, because that decision contaminates the roof for the next recoat and the cost surfaces years later when a crew has to cut out every incompatible spot before coating. Asphalt mastic is the usual offender, since it is sold in every hardware store in Maricopa County and it looks like it works. Identifying what is on the roof before repairing it is not a formality, and when the history is genuinely unknown a small test patch answers the question in a day.

• Silicone repairs on silicone roofs only, since no other chemistry bonds reliably to a cured silicone surface
• Acrylic patches over acrylic systems, applied only when the surface is clean, dry, and free of chalk
• Urethane repairs on urethane systems, respecting the intercoat window so the patch bonds chemically rather than mechanically
• Asphaltic mastic avoided entirely on any foam roof intended to be recoated, because it must be removed before the next coating cycle
• Reinforcing fabric matched to the coating chemistry rather than whatever polyester is on the truck
• Foam repairs made with roofing-grade closed-cell material, never lower density wall or attic foam
• Sealants at penetrations chosen for compatibility with both the pipe material and the surrounding coating

Documenting a Repair for Insurance and Warranty Purposes

A repair that is not documented is, for practical purposes, a repair that did not happen. Warranty programs generally require prompt correction of damage and written notice of leaks inside a defined window, and an undocumented fix satisfies neither. Insurance carriers evaluating a storm claim want dated evidence of the damage, evidence of the condition before the event, and a record of the mitigation performed. On a Phoenix roof where hail and microburst debris are the realistic loss events, that documentation is the difference between a covered claim and a denied one.

The record does not need to be elaborate. Photographs of the damage before work begins, photographs of the substrate once the area is opened, photographs of the reinforcement and the finished coating, the date, the location marked on a roof plan, and a note of the materials used. Keep it with the original coating specification and the warranty document rather than in a separate pile. Owners who maintain that file year over year almost never lose a claim on procedural grounds, and they hand the next owner an asset with a history instead of a mystery.

When Repair Economics Flip Toward a Full Recoat

There is a crossover point where spot repair stops being the economical choice, and it is defined by remaining coating thickness rather than by the number of leaks. If measurements show a healthy film across the roof and you have two isolated failures, repairing them is obviously correct. If the coating is already down to a handful of mils and chalking across every exposure, every dollar spent on patches is spent on a surface that needs replacing within a year or two anyway, and the patches themselves will have to be worked into the recoat.

The other trigger is frequency. When a roof produces three or more separate repair calls inside a single monsoon season, the failures are usually systemic rather than incidental, which means the coating has lost the elongation it needs to handle daily thermal movement. At that point the roof is telling you something that individual repairs cannot address. We measure thickness on every repair visit for exactly this reason, and we will tell you when the arithmetic has flipped. Call (602) 806-1052 and we will give you the honest read rather than the profitable one.
