Ponding Water Correction for Phoenix Flat Roofs

Overview

The industry benchmark is straightforward: water should be gone from a roof within 48 hours of the end of rainfall under conditions that favor drying. Anything still standing after that is ponding, and Phoenix roofs are full of it. Many mid century ranch and Santa Fe style homes here were built essentially dead flat, with drainage relying on nothing more than a couple of scuppers through a parapet. Add decades of deck deflection, crushed foam from foot traffic, and settled framing, and you get low spots that hold water for a week after a single monsoon storm.

Standing water does real damage even in a desert. It accelerates coating breakdown, particularly on acrylic systems that soften and re-emulsify when submerged. It grows algae and mineral deposits that stain and hold more water. It concentrates weight, since water at roughly 5.2 pounds per square foot per inch of depth adds up quickly across a large pond on a deck that was never designed for it. Most importantly, it turns any pinhole, crack, or marginal detail from a minor issue into a continuous entry point, because water under head pressure will find its way through openings that would never leak from a passing shower.

Correcting it on a foam roof is one of SPF technology's real advantages. Unlike membrane systems where slope correction means installing tapered insulation board, spray foam can be built up in place to any contour we need. We locate low points with a flood test or by observing where water actually stands, then spray tapered foam crickets and saddles that push water toward the drains and scuppers. Depth is built gradually, feathered into the surrounding roof, and coated as part of the system. On roofs where full correction is not practical, we combine partial tapering with high solids silicone that tolerates residual ponding.

Measuring Deflection Before Designing Any Slope

Correcting ponding starts with knowing precisely how far out of level the roof actually is, and eyeballing a low spot is not measurement. The practical methods are straightforward. A long straightedge with a level laid across the depression gives you depth at a point. A rotating laser set up on the roof lets you shoot elevations across a grid and produce a contour picture of the whole surface. On a roof that already ponds, the simplest and most honest method is to look at it while the water is still there and mark the perimeter of the pond directly on the surface.

That map matters because tapered foam is designed against measured elevations, not impressions. You need to know where the true low point sits, how deep the depression runs at its worst, how far the correction has to extend to blend into sound roof, and where the nearest functioning outlet actually is relative to all of it. Skipping the survey and simply building up the obvious dip usually relocates the pond a few feet rather than eliminating it, which is a result nobody is happy to pay for twice.

Cricket Geometry And The Quarter-Inch Rule

The conventional target for positive drainage on a low slope roof is a quarter inch of fall per foot of run. That figure exists because it reliably moves water even after the deck deflects slightly under load and after some coating buildup accumulates over the years. On a foam roof it becomes a design input for shaping a cricket, which is simply a wedge of tapered foam built to divert water around an obstruction or push it toward an outlet.

Cricket geometry follows from the distance involved. If an outlet sits twelve feet from the high side of the correction, hitting a quarter inch per foot means building three inches of foam at the high edge and feathering to nothing at the outlet. That is a significant volume of material, and it is why long runs get expensive quickly. It is also why crickets are often designed as a series of shorter diversions toward multiple outlets rather than one continuous slope across an entire roof, which uses far less foam for the same result.

How Much Foam A Taper Actually Consumes

Flat coverage is easy to estimate because thickness is constant. Tapered work is not, and this is where inexperienced bids go wrong. A wedge averages roughly half its maximum thickness across its run, so a cricket built to three inches at the high edge and zero at the outlet consumes about the same foam as an inch and a half of flat coverage over the same footprint. Across several crickets on a deflected roof, that adds up to a materially larger material order than the square footage alone suggests.

There is a labor multiplier as well. Tapered foam has to be sprayed in successive lifts, each one shorter than the last, with the operator building the wedge in stages rather than making one continuous pass. Then it is rasped and shaped by hand to produce a smooth plane that actually drains rather than a lumpy approximation that creates new small ponds. Shaping time frequently exceeds spray time on this work, and any estimate that treats tapering as ordinary coverage is going to be revised.

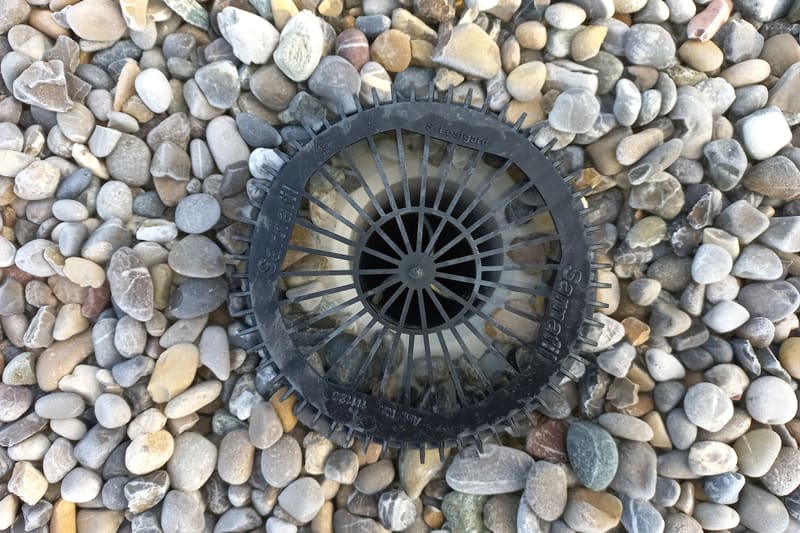

Sumps, Scuppers, And Getting Water Through The Parapet

Sometimes the roof surface is not the problem. On a great many Phoenix buildings the outlet itself was set too high, so water pools around a drain that sits above the surrounding surface and simply never reaches it. Tapering the entire roof toward an outlet that is at the wrong elevation is expensive and only partly effective. Lowering the outlet, or building a sump that drops the surface into it, solves the same problem with a fraction of the material.

Scuppers through a parapet have their own constraints, because the invert of the opening establishes a floor below which water cannot drain no matter what you do to the roof surface. If the scupper throat sits an inch above the deck, an inch of water stays on that roof permanently. Enlarging the opening, lowering the invert, or adding a second outlet at a better elevation are all masonry and sheet metal tasks rather than roofing ones, and they need to be scoped honestly rather than papered over with foam.

Checking Structure Before You Add Slope

Tapered foam adds weight, and a roof that is already deflecting is by definition a roof where load and structure are in an uneasy relationship. Foam is light, at roughly 2.8 to 3 pounds per cubic foot, so the added dead load from a typical cricket is modest and is very often less than the weight of the water it displaces. Trading several inches of standing water for a few inches of foam is usually a net reduction in load rather than an increase. Still, when a deflection is pronounced or has clearly worsened over the last few years, the cause deserves attention before the symptom does.

Sagging that follows a joist line, cracking in interior finishes below, or a dip that has deepened noticeably in a few years all suggest a structural question rather than a roofing one. In those cases the right sequence is to have the framing evaluated, address whatever is found, and then correct the drainage. Building slope over a structural problem hides it, and the roof will simply deflect again into a new low spot with the correction now buried underneath.

When Tapering Is Not The Right Answer

Full slope correction is not always achievable or economically sensible, and a contractor who claims otherwise on every roof is not being straight with you. Several conditions push the decision toward tolerating shallow residual ponding and pairing it with a coating chemistry that genuinely handles standing water, rather than chasing perfect drainage with an ever-growing volume of foam. High-solids silicone exists in part for exactly this scenario, since it does not soften or re-emulsify under a persistent shallow pond the way an acrylic system will. Recognizing these conditions early keeps the budget honest and keeps the conversation focused on outcomes rather than on an ideal that the building will not support.

• Very shallow ponding over a broad area, where the foam volume required is disproportionate to the benefit
• Outlets fixed at an elevation that cannot be lowered without significant structural or masonry work
• Roofs where added thickness would raise the surface above existing door thresholds or wall flashings
• Buildings with a short remaining ownership horizon where a full recoat cycle is the practical planning window
• Areas beneath solar arrays or fixed equipment where access for spraying and shaping is severely restricted
• Situations where the deflection is active and structural repair should logically come first

Confirming The Correction Actually Drains

The only real proof that a drainage correction worked is watching water leave the roof. Visual inspection of a freshly shaped cricket is not proof, because a plane that looks perfectly acceptable from a standing height can still hold a shallow film that will not clear on its own. Given that Phoenix goes months at a stretch without meaningful rain, waiting for weather to test the work means waiting for a season, and by then the crew is long gone. Verification with a hose is quick, costs almost nothing, and separates a corrected roof from one that will disappoint you during the first serious storm of the following June.

1. Flood the corrected area with a hose before coating and watch where the water actually travels
2. Mark any remaining low spot and build it up with additional foam while the crew is still mobilized
3. Re-flood and confirm the surface clears completely rather than holding a residual film
4. Coat the corrected area, using a chemistry that tolerates standing water wherever residual ponding remains
5. Flood test once more after cure to confirm the finished contour still drains as shaped
6. Photograph the drainage behavior for the property file so future conditions can be compared against it

Ponding is the single condition that turns every other small defect on a roof into an active leak, because water under head pressure exploits openings that a passing shower would never find. Correcting it is usually cheaper than the leak repairs it prevents, and on a foam roof it is one of the things the material does better than any membrane alternative. Call (602) 806-1052 and we will measure the low areas, map the outlets, and tell you what a real correction involves on your building.
